If you wish to add iD48 to a Rack, then this can be achieved by fitting the Rack Ears included in the box.

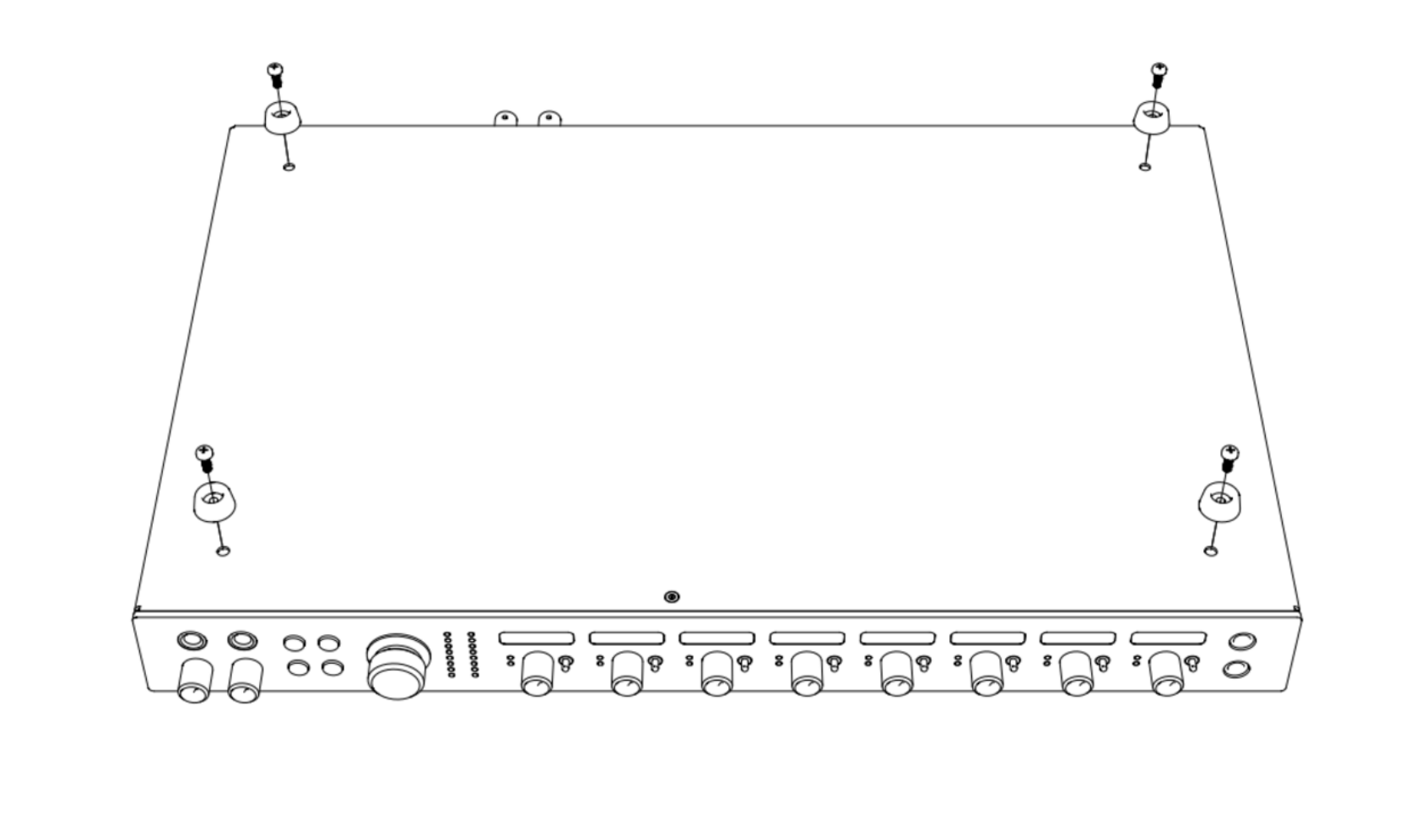

With the Rack Ears fitted, the iD48 is a standard 1RU unit. First, you would need to remove the rubber feet from the underside of the unit. To do this, remove the Phillips head screws from the centre of each foot with a screwdriver, and lift the foot off the chassis.
PLEASE NOTE: DO NOT REPLACE THE SCREWS BACK INTO THE UNIT AFTER REMOVING THE RUBBER FEET, AS THIS CAN DAMAGE THE UNIT

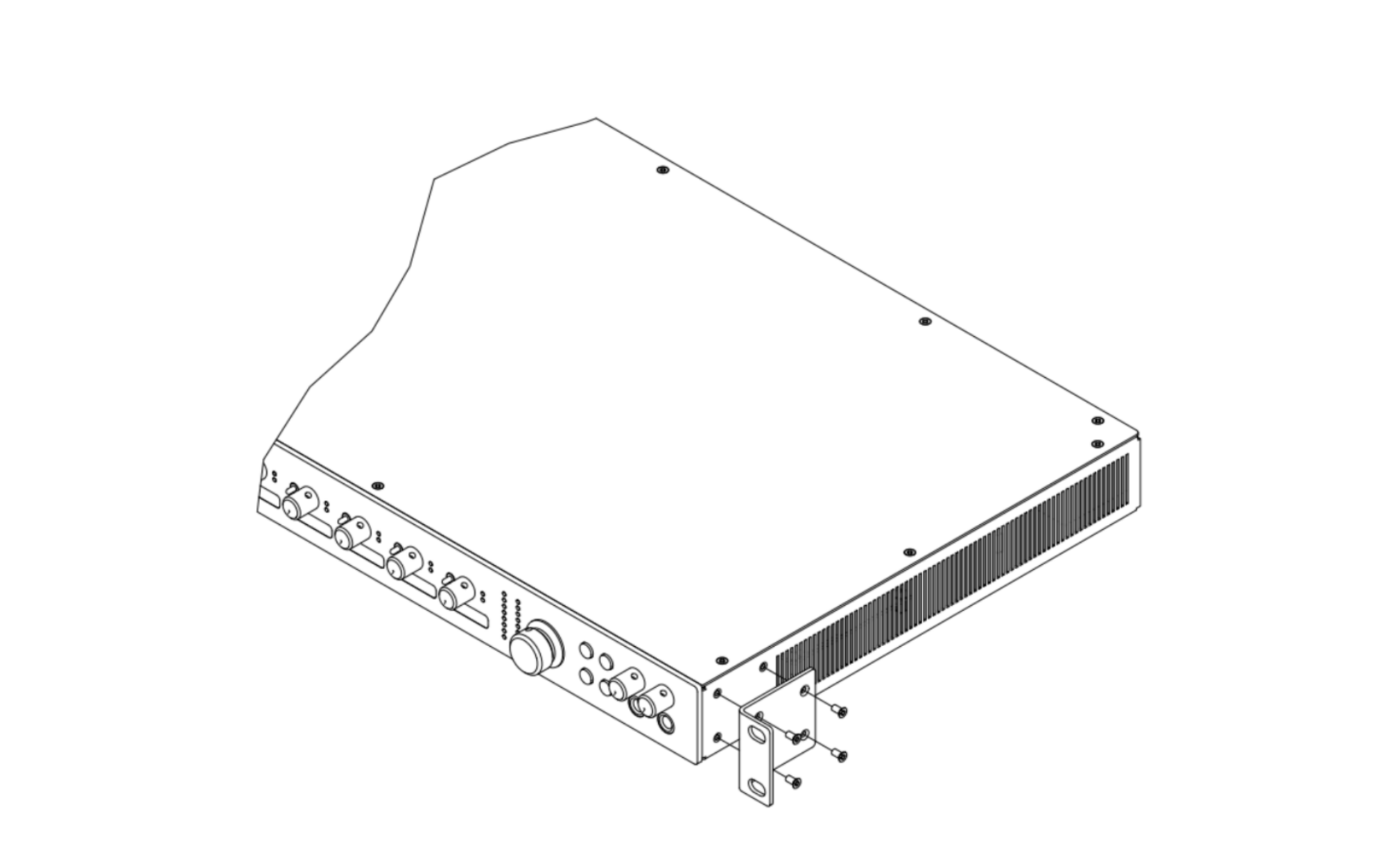

Now, the Rack Ears can be attached to the side of the unit. On each side of the unit, there are four threaded holes. Align the Rack Ears with these holes, and using a screwdriver, screw the 4 included M3 Pozi screws into the threaded holes to secure the Rack Ear as shown below.
Repeat this process for the other Rack Ear. With the Rack Ears fitted, the iD48 can now be added to your Rack.
Rack Safety Instructions
iD48 requires 1U of vertical rack space and a minimum of 400mm rack depth, allowing for cables. It weighs 3.9kg, and for fixed installations, such as a studio, the four front panel mounting screws will provide adequate support. The front panel depth is 3mm at the mounting positions.
iD48 does not generate significant heat and is cooled by natural convection. We recommend that the unit should not be used in locations where the ambient temperature is greater than 35°C. Ventilation is via slots on either side of the enclosure, and these must be clear of obstruction.
Do not mount iD48 immediately above or below any other equipment which generates significant heat, for example, a power amplifier.
